Modern graphics processing units are among the most complex pieces of consumer electronics manufactured. A contemporary high-end GPU contains tens of billions of transistors arranged into specialised processing units, memory interfaces, and control logic — all working in parallel to transform geometric and texture data into the final image you see on screen. Understanding the basic architecture of these chips helps demystify the specifications published by manufacturers and allows for more informed product comparisons.
This article focuses on the fundamental architectural elements that are relevant to gaming performance: shader processors, memory systems, rasterisation pipeline, ray tracing hardware, and AI acceleration. We also examine how different manufacturers organise these elements and what the practical implications are for the numbers that appear in specifications lists.
The Shader Core: GPU Parallelism
The defining characteristic of a GPU compared to a CPU is its degree of parallelism. Where a modern CPU might have 16 or 32 cores optimised for complex, sequential workloads with large caches and sophisticated branch prediction, a high-end GPU contains thousands of simpler processing units — called shader cores, CUDA cores (NVIDIA), or stream processors (AMD) — that execute relatively simple mathematical operations across huge numbers of data elements simultaneously.
Rendering a 3D scene involves applying the same set of operations — vertex transformations, pixel shading, texture sampling — to millions of individual data points per frame. This maps naturally onto massively parallel hardware. A GPU with 16,384 CUDA cores, such as NVIDIA's RTX 4090, can process far more shader invocations per clock cycle than even the most powerful CPU.
However, raw core count alone is an incomplete predictor of performance. The efficiency per core, the clock frequency at which those cores operate, and the architecture generation all influence the performance delivered per core. NVIDIA's Ada Lovelace architecture (RTX 4000 series) improved performance-per-watt significantly compared to the preceding Ampere generation, partly through a refined shader core design and improved cache hierarchy.
Memory Architecture and Bandwidth
The GPU's memory subsystem is critical to performance. Every texture sample, framebuffer read, and intermediate rendering result passes through or originates from the GPU's video memory (VRAM). The speed at which the GPU can move data to and from this memory — expressed as memory bandwidth — directly limits how quickly the rendering pipeline can operate in scenarios where the memory subsystem is the constraint.
VRAM Capacity
VRAM capacity determines how much texture data, frame buffer information, and intermediate rendering results the GPU can keep resident at one time. When VRAM is exhausted, the GPU must stream data from system memory over the PCIe bus, which is orders of magnitude slower and results in stuttering or frame rate drops that are typically noticeable during play.
The minimum VRAM requirement for a given resolution and texture quality has increased with each generation of games. At 4K resolution with high texture quality settings, games in 2025 and 2026 regularly require 12–16 GB of VRAM to operate without streaming bottlenecks. This is one reason the 16 GB VRAM on the RTX 4080 is considered an advantage over the 12 GB on the RTX 4070 Ti Super in 4K workloads, despite similar core counts.
Memory Type and Bandwidth
GDDR6X, as used in NVIDIA's high-end RTX 4000 series cards, offers higher bandwidth than standard GDDR6 by using PAM4 signalling — transmitting four voltage levels rather than two, effectively doubling data per signal transition. A card like the RTX 4090, with its 384-bit memory bus and GDDR6X running at 21 Gbps per pin, delivers a theoretical bandwidth of over 1 TB/s. This headroom ensures the memory subsystem rarely constrains the shader cores in typical rendering workloads.
The Rendering Pipeline
The rasterisation pipeline — the traditional method by which 3D geometry is converted to a 2D image — involves several distinct stages. The vertex shader processes the position and attributes of each geometric vertex. The rasteriser determines which pixels each triangle covers. The pixel (fragment) shader computes the colour of each pixel based on lighting models, textures, and material properties.
Each of these stages is executed on the GPU's shader cores, but the balance of work between them varies by scene. Geometry-heavy scenes with many small triangles are vertex-bound; complex scenes with many layers of transparent geometry are pixel-bound. GPU architects design hardware that attempts to balance throughput across these stages for typical gaming workloads.
Texture Sampling Units
Texture mapping units (TMUs) are dedicated hardware blocks that handle texture sampling — the process of reading texture data and applying filtering. The ratio of TMUs to shader cores affects how efficiently the GPU handles texture-heavy scenes. In NVIDIA's Ada Lovelace architecture, TMU count scales proportionally with shader core count within each tier.
Render Output Units
Render output units (ROPs) handle the final stage of the rasterisation pipeline: writing completed pixel data to the framebuffer in memory. ROP count affects fillrate — how quickly the GPU can write pixels — which becomes relevant at very high resolutions or when rendering multiple render targets simultaneously (as required by deferred shading approaches).
Ray Tracing Hardware
Hardware-accelerated ray tracing was introduced with NVIDIA's Turing architecture (RTX 2000 series) and has been improved with each subsequent generation. Dedicated ray tracing cores — called RT Cores in NVIDIA's terminology — handle the mathematical operations required to test whether a ray of light intersects with scene geometry, a calculation required for physically accurate shadows, reflections, and ambient occlusion.
Without dedicated hardware, ray intersection tests would need to run on the same shader cores used for rasterisation, with a significant performance penalty. The RT Core implementation offloads these tests to separate, purpose-built hardware, allowing rasterisation to continue in parallel. In Ada Lovelace (RTX 4000 series), the third-generation RT Cores offer approximately twice the throughput of the first-generation implementation in the RTX 2000 series.
Ray tracing is not a binary feature — games implement it selectively. A game might use ray tracing for shadows only, or for reflections only, controlling the performance cost by limiting the scope of ray traced effects.
AMD's RDNA 3 architecture (RX 7000 series) includes its own hardware ray accelerators, which have narrowed the ray tracing performance gap with NVIDIA. However, NVIDIA still holds an advantage in ray tracing workloads, partly due to longer experience optimising the hardware and driver stack for these tasks.
AI Acceleration and Upscaling Technologies
NVIDIA's Tensor Cores, introduced with the Turing architecture and significantly expanded in subsequent generations, are dedicated hardware units optimised for matrix multiply operations — the core computation in neural network inference. In the context of gaming, they power DLSS (Deep Learning Super Sampling), which uses a trained neural network to upscale a lower-resolution rendered frame to the output resolution.
The practical result of DLSS is that a game rendered internally at 1440p can be displayed at 4K with image quality that, in many cases, is comparable or superior to native 4K rendering — while requiring substantially less GPU work. DLSS 3, introduced with Ada Lovelace, added frame generation: the ability to generate entirely new frames by inferring intermediate states between rendered frames, doubling apparent frame rate at the cost of some added latency.
AMD's equivalent, FSR (FidelityFX Super Resolution), takes a different approach: later versions use temporal information but do not require dedicated hardware, making FSR compatible across a wider range of GPU hardware including non-AMD cards. Intel's XeSS offers yet another approach, using depth buffer and motion vector data with neural network-based upscaling on Intel Arc GPUs.
Interpreting Manufacturer Specifications
Several numbers commonly appear in GPU specifications without always being contextualised:
- TFLOPS (Teraflops of FP32 compute): A measure of floating-point computational throughput. Useful for comparing performance within the same architecture generation, but not directly comparable between NVIDIA and AMD due to different instruction execution models. A GPU with a higher TFLOPS rating in one generation may not outperform a lower-TFLOPS GPU from a more efficient architecture generation.
- Boost clock: The maximum clock speed the GPU will reach under optimal conditions. Most GPUs spend sustained workloads at frequencies somewhat below their stated boost clock, as thermal and power limits are applied. Average operating frequency under sustained gaming load is a more meaningful metric.
- Memory bus width: The width of the memory interface in bits. Wider interfaces allow higher bandwidth at the same memory frequency. Compare bandwidth figures (in GB/s) rather than bus width alone when comparing different memory types.
MSI's GPU Design Philosophy

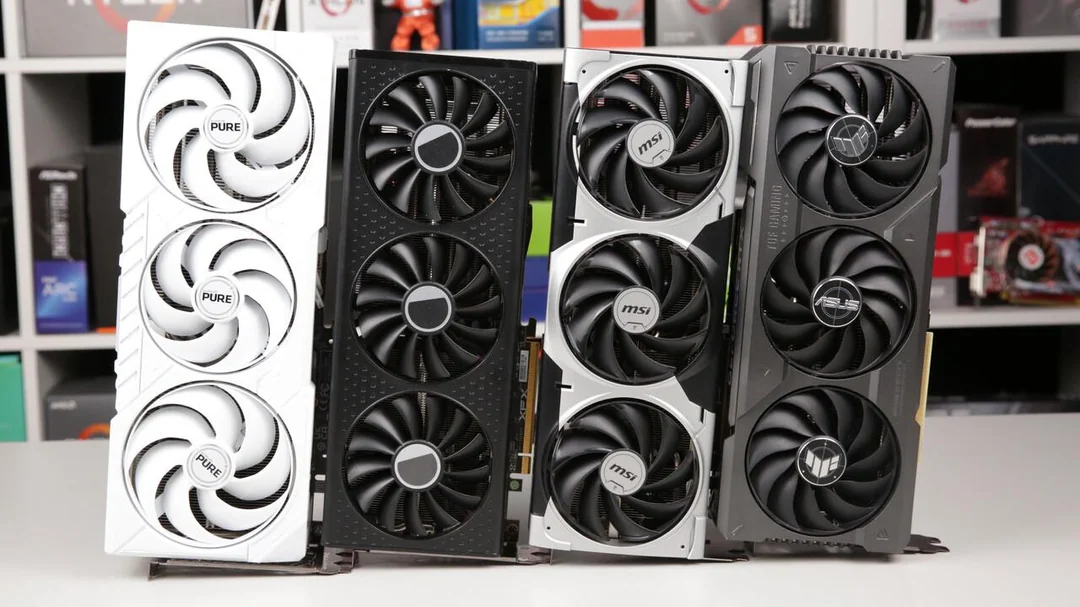

MSI's graphics card product lines take the same GPU silicon as other add-in board (AIB) partners but differentiate through cooling design, factory clock settings, and PCB quality. The Gaming X Trio lineup, for instance, uses MSI's TORX Fan 5.0 cooling system with a triple-fan configuration designed for lower noise at equivalent thermal performance compared to the reference cooler design.
The Suprim X lineup occupies the top tier, with the most substantial cooling solutions and higher factory overclock profiles. These design choices do not alter the underlying GPU's architecture, but they do affect how consistently the card can maintain its boost clock frequency and at what noise level it operates during extended gaming sessions.
What Matters Most for Your Usage

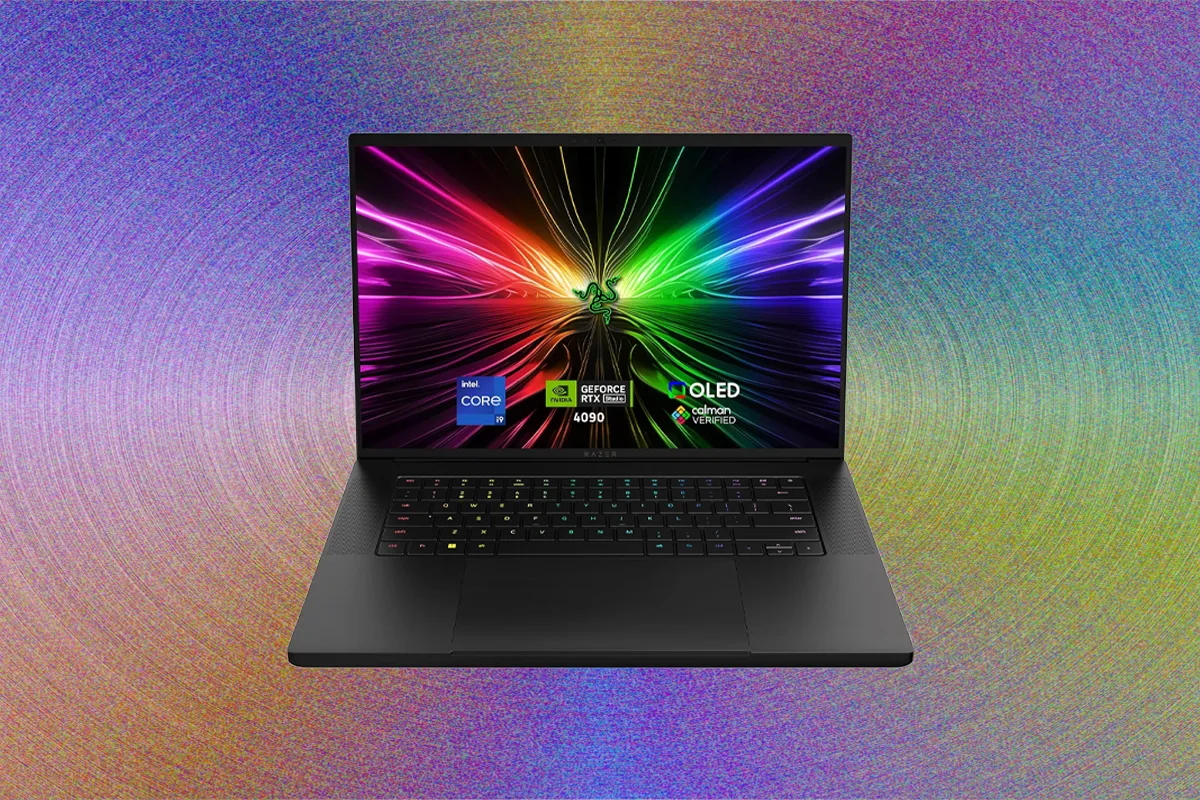

Understanding GPU architecture is useful context, but purchasing decisions should ultimately be anchored to specific, measurable outcomes for your use case. For gaming at 1080p 144Hz, a GPU in the RTX 4060–4070 class will handle the majority of current titles at high settings without VRAM or bandwidth constraints. For 1440p gaming, the RTX 4070 Ti and RX 7900 XT represent a practical tier. For 4K at high settings with ray tracing, the RTX 4090 is currently the only laptop GPU that handles this comfortably in demanding titles.
The GPU Performance Quiz on our homepage tests comprehension of the core concepts covered here and provides feedback on specific areas where further reading may be useful.
